Product code: DM32

DM32

The DM32 is no longer for sale and has been replaced by the DM32X. To view the DM32X, CLICK HERE.

Retrotec continues to provide calibration and repair services for the DM32.

1 x DM32 Gauge Package

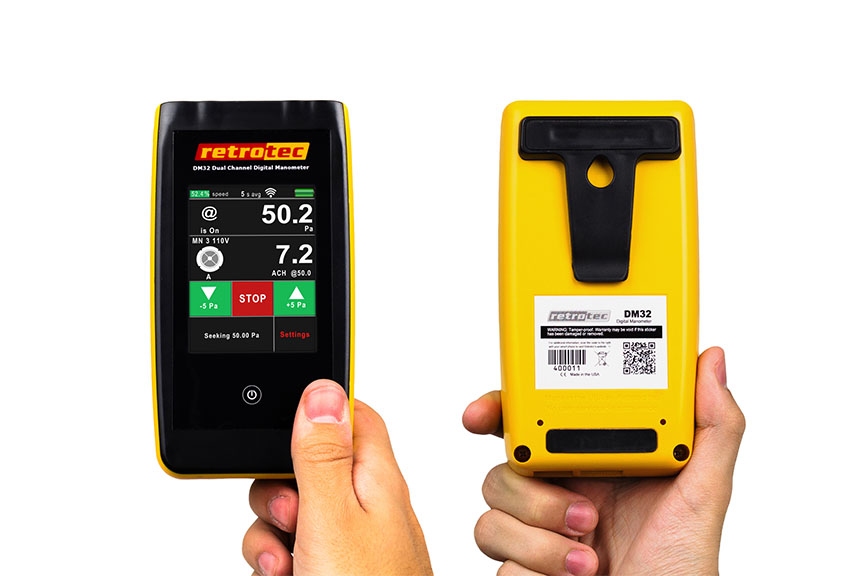

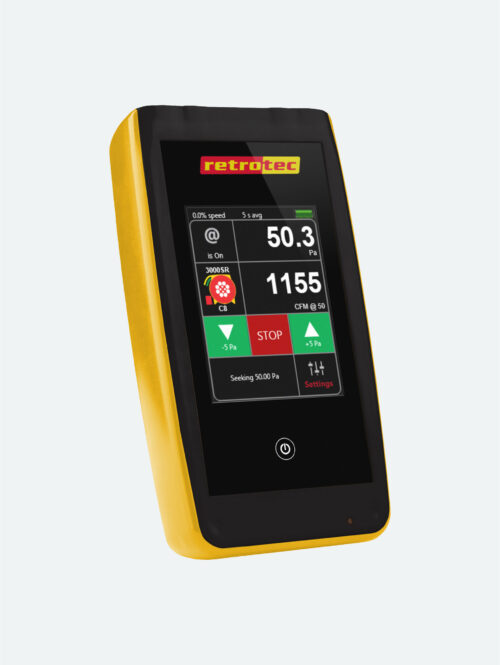

  • DM32 Gauge
  • DM32 Charger + Power Supply
  • DM32 Gauge Case
  • ISO 17025 Accredited Gauge Calibration & Certificate

Gauge Model:

DM32W
Dimensions: 5.8″ × 3.6″ × 1.4″ (14.7 × 9.2 × 3.5 cm)
Weight: 12 oz (340 g)
Power: 4200 mAh LiPoly rechargeable battery.  Integrated on board charging circuit.

Up to 11 hours battery life on a single charge.

(Battery life and charge cycles vary by use and settings; actual results will vary.)

Screen type: QVGA Color touchscreen LCD display
Screen dimensions: 3.2” (8.2 cm) diagonal, 2.6″ × 1.9″ (6.6 × 5.0 cm)
Microcontroller: 32 bit

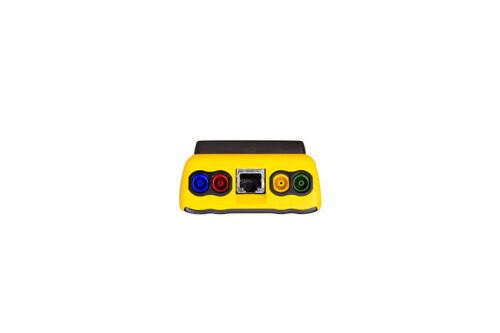

Pressure channels: 2 independent pressure channels (“A” & “B”)
Pressure sensor type: Digital
Pressure range:

DM32-10A (current version)
-2,488 Pa to +2,488 Pa (-10 to +10 in W.C.)



DM32-4A (no longer sold)
-995 Pa to +995 Pa (-4 to +4 in W.C.)



DM32-20A (current version for commercial ductesters)
-4,976 Pa to +4,976 Pa (-20 to +20 in W.C.)



* DM32-20A started shipping Jan 2015

* DM32-10A started shipping Oct 2017



Pressure resolution: 0.1 Pa (0.004 in WC, 0.002  psf)
Pressure accuracy: DM32-10A (current version)
+/- 0.4% of pressure reading or +/- .07 Pa @ 22 degree (C)+/- 0.6% of pressure reading or +/- .15 Pa @ 0 – 44 degree (C)+/- 0.9% of pressure reading or +/- 1 Pa @ 70 degree (C)

DM32-4A (no longer sold)
±1% of pressure reading or ±0.25 Pa (whichever is greater)



DM32-20A (current version for commercial ductesters)
±1% of pressure reading or ±1.0 Pa (whichever is greater)

Pressure accuracy calibration meets: USACE, ASTM E779, CGSB-149.10, EN 13829, UK ATTMA TSL1 and TSL2, NFPA 2001, ISO 14520, EN15004, ISO9972



the DM32-20A does not meet these standards and is meant to be used for high pressure testing where 1 Pa or 1%  is adequate accuracy

Temperature Ranges: Compensated:
32°F to 158°F (0°C to 70°C)Operating Storage:
-13°F to 185°F  (-25°C to 85°C)
-40°F to 257°F  (-40°C to 125°C)
Humidity Limits
(non condensing)
0 to 95% RH
PC Connectivity options (MS Windows only): Ethernet (direct or over network), USB (direct), Wireless via WiFi
WiFi 802.11 protocols: b/g/n
Recommended calibration interval: Every 5 years



Request a Quote

Talk with a Sales Rep

Resellers, Testers, Trainers

Description

Pressure Measurement of the Highest Precision

Experience precision and adaptability with the Solo Single Channel Manometer. This cutting-edge digital gauge is accurate and versatile, all while maintaining affordability. The Solo boasts exceptional accuracy, providing measurements with precision up to 1/100th of a Pa. It utilizes the same digital sensor and filtering technology as our DM32X and features auto-zeroing technology for hassle-free operation. Adjust Time Averaging directly from the gauge itself, eliminating the need for complicated app pairing. A Responsive Display Screen quickly changes directions when maneuvering the gauge from Landscape into Portrait mode. Charging is a breeze with two hour fast charging via USB-C. In most cases, an app isn’t required when this tool is used. Therefore, wireless connectivity is not included, only high-precision readings. This keeps the cost down and makes it the perfect tool to introduce HVAC contractors to home performance. For Energy Auditors, the Solo pairs effortlessly with a running blower door. Connect the gauge to a Mini Probe or Pressure Pan & efficiently detect / pinpoint external air leaks, enhancing your energy audit capabilities. Easily switch between units of measurement: change from measuring “Pascals” to “Inches of Water Column” when assessing static pressure, making it a valuable tool for HVAC diagnostics. Upgrade your measurement precision with the Solo Single Channel Manometer: the essential tool for professionals seeking the highest standards of accuracy and flexibility.

Features

  • Auto – zeroing technology for hassle free operation.
  • Adjust Time Averaging directly on the gauge. Eliminates the need to pair with an app.
  • Responsive Display Screen changes directions when maneuvering from Landscape into Portrait mode.
  • 19 hour continuous battery life. 2-hour fast charge via USB-C.
  • Magnetized clip for convenient HVAC placement.
  • Test at multiple units of measurement.
  • Unmatched accuracy in the most demanding environments.
  • Most affordable high precision MicroManometer on the market.
Solo Single Channel Manometer

Additional information

Weight 4 lbs
Dimensions 11 × 10 × 7 in
