7120F Hard Panel High Pressure Blower Door System

Support:

rCloud

Find a Reseller

Product code: 7120F

Model 7120F Fire [Enclosure Integrity]

$12,700.00

Overview Features
Included Items
Tech Specs

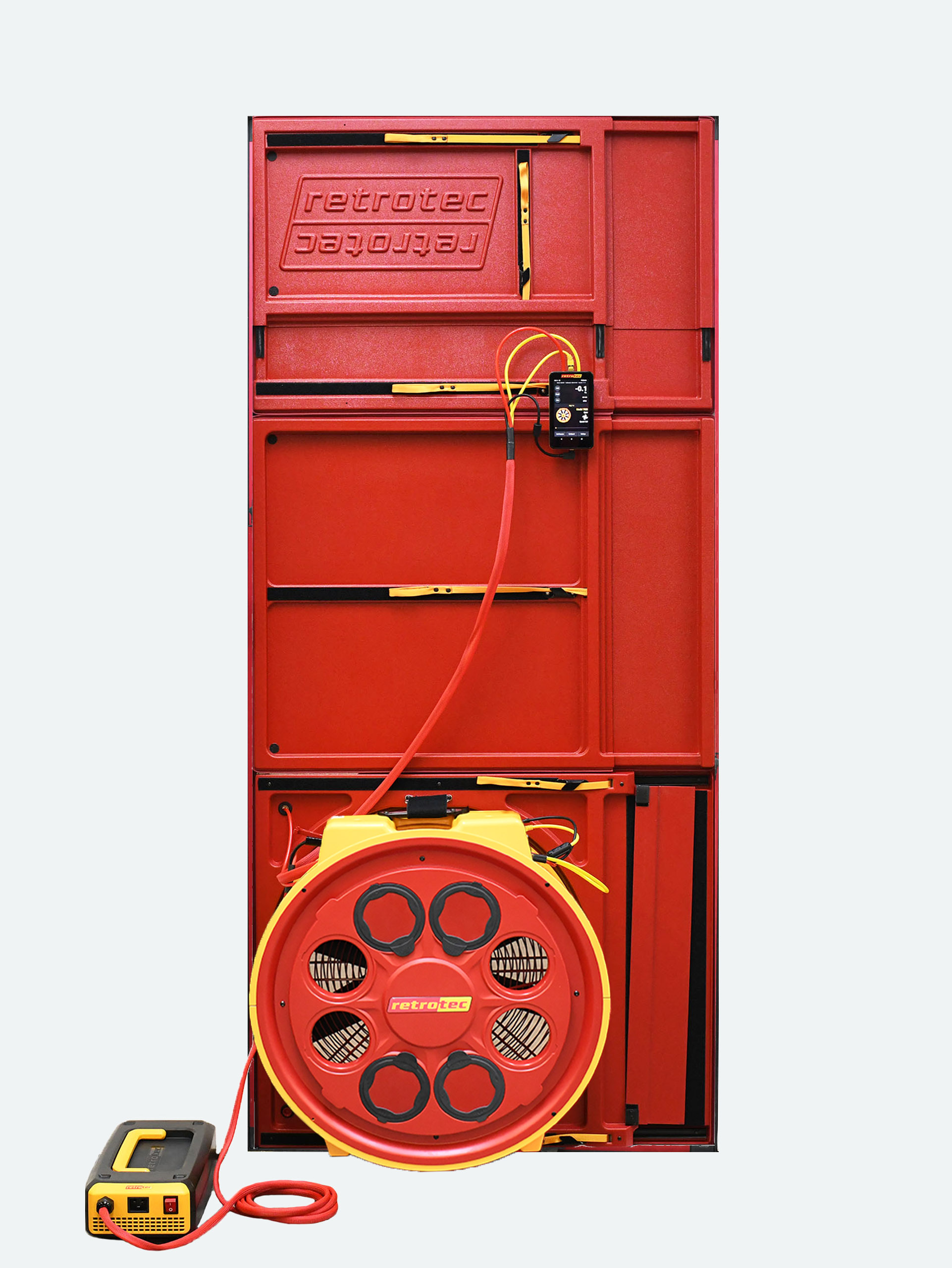

7120F – Hard Panel High Pressure Blower Door System

The Model 7120F does the same job as the 7110F, but with the added benefit of modular panels that are quick to set up and look very professional.

Incorporating the revolutionary blower door fan from the 7000 Series, the 7120F is over 30% lighter than previous models. Weighing just 23 lbs (10.4 kg), compared to its 33.5 lbs (15 kg) predecessors, it provides unmatched portability without sacrificing power. It reaches higher CFM @ 50Pa than the Model 5000 Fan and often surpasses the 6000 fan in many scenarios.

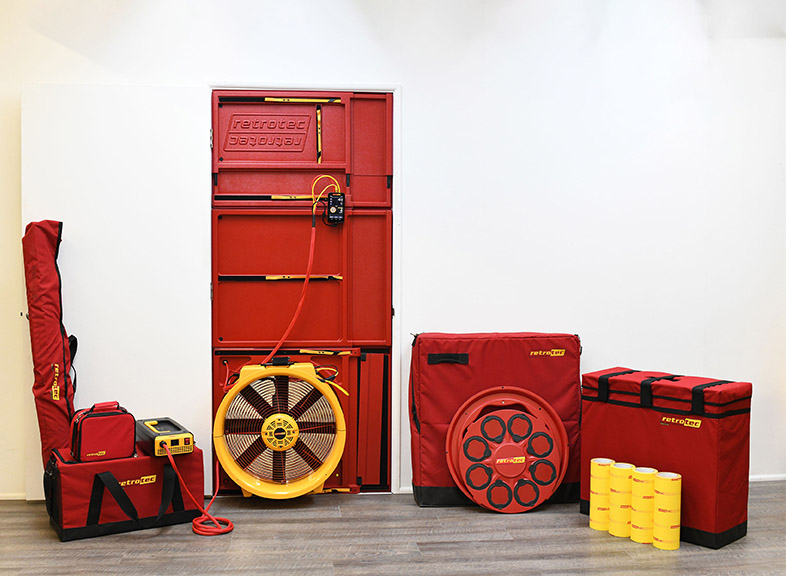

Includes fan case, tool case plus a large aluminum frame and cloth panel for tight enclosures.

Why Retrotec for Enclosure Integrity?

All Retrotec systems include tech support from the company that originated the idea of Enclosure Integrity testing in 1984. Retrotec promoted it within NFPA and in 1986 wrote the first Enclosure Integrity standard. Retrotec has been the lead researcher for enclosure testing ever since, with every major clean agent system manufacturer worldwide relying on Retrotec’s expertise for both hold time and peak pressure predictions.

1 x 7000 Series Fan Set

7000 Series Calibrated Fan
High Power Drive for 7000 Series Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
Range Ring A for 7000 Series Fan
B8 Plate for 7000 Series Fan
8 x Blank Plugs
2 x Fan Cover
System Calibration Verification Report

1 x DM32X Gauge Package

DM32X Gauge
USB-C Charging Cable
Cat5 Cable
Gauge Case
DM32X Magnetic Clip
ISO17025 calibration of DM32X
Gauge Calibration Verification Report

1 x Hard Panel Set for 1000/5000/6000/7000 Series Fan

1 x Blower Door Tubing Kit

4 x Roll of Grill Masks

1 x Umbilical for 7000 Series Fan

1 x Large Frame Package

1 x Fan Case

1 x Accessory Case

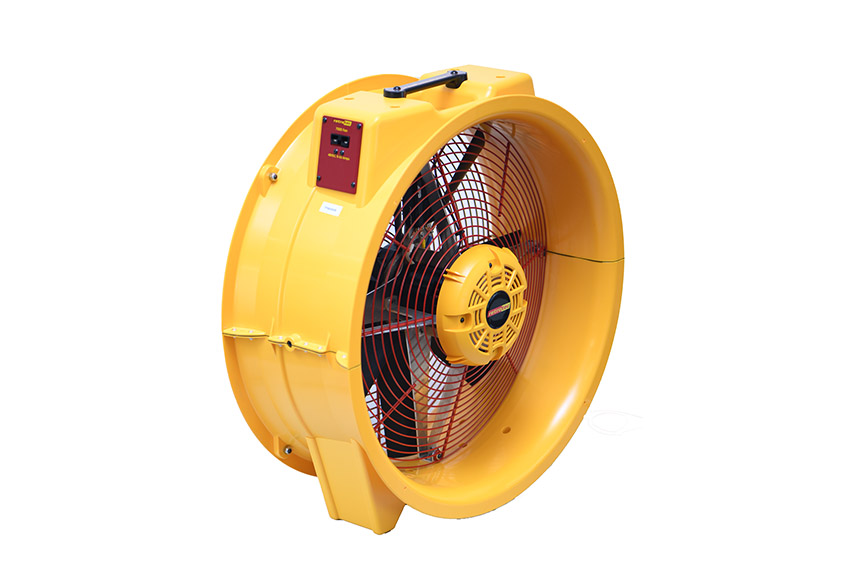

Model 7000 Fan
	Flow Into:	Flow 120/240V (CFM / M3H)
Max Flow, per fan	Free Air	7,850 CFM / 9,342 CFM • 15,872 m3/h
	50 Pa	7,358 CFM / 8,896 CFM • 15,115 m3/h
	75 Pa	7,054 CFM / 8,637 CFM • 14,675 m3/h
Minimum Flow:
on Included Range B1	60 Pa	120 CFM • 204 m3/h • 57 1/s
on Optional Range 74	50 Pa	51 CFM • 86 m3/h • 24 1/s
on Optional Range 47	50 Pa	24 CFM • 40 m3/h • 11 1/s
on Optional Range 29	50 Pa	8 CFM • 14 m3/h • 4 1/s
Dimensions:	22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height
Weight:	Fan Only : 23 lbs/ 10.43 kg Fan + Ranges: 25.4 lbs/ 11.52 kg Power Supply: 13.4 lbs/ 6.08 kg
Flow Accuracy:	+/-5%
Digital Gauge Model:	DM32X (Click Here)
