Product code: 5210

Model 5210

$8,825.00

2 regular Classic fans in one doorway.

Overview Features
Included Items
Tech Specs

Exceptional Performance & Value

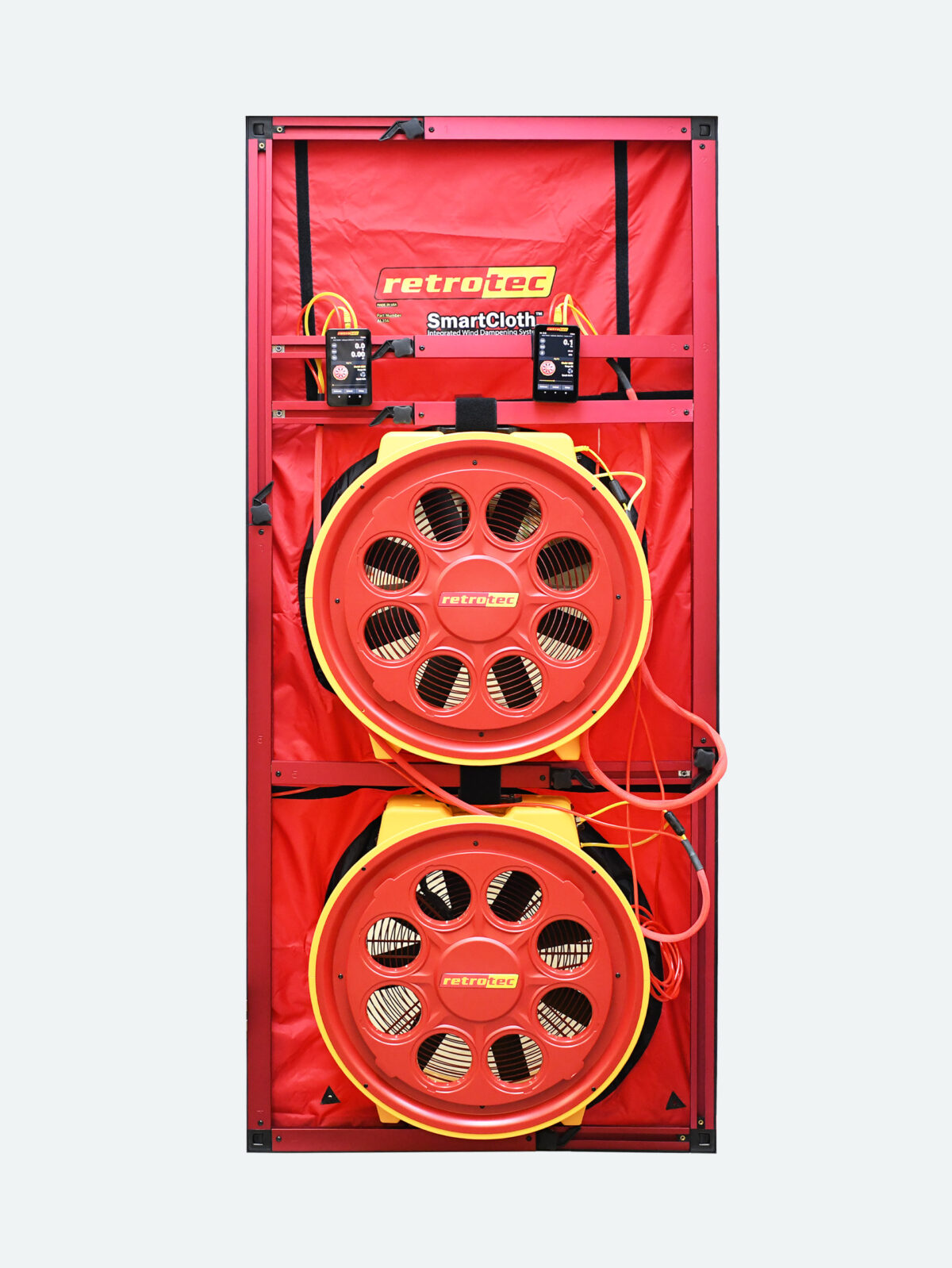

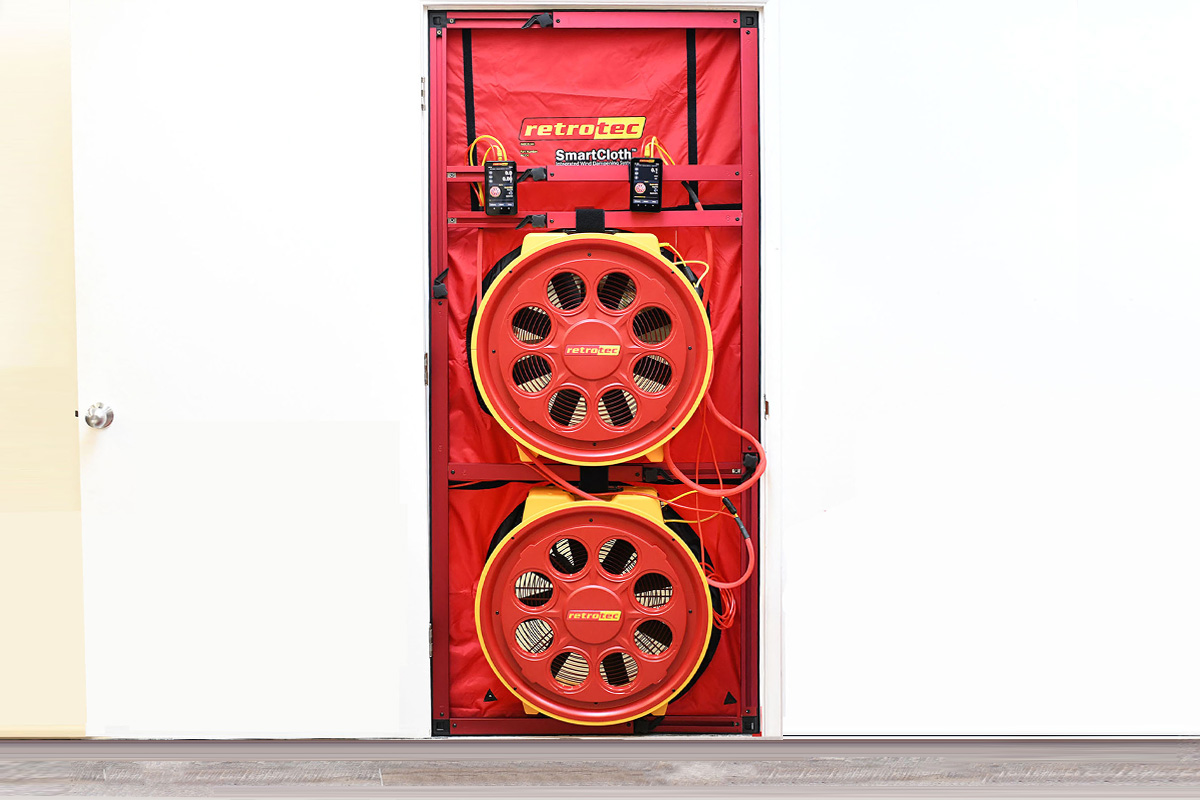

The Model 5210 can be configured into two separate Model 5100 systems with an additional single-hole cloth panel, providing flexibility for professionals. Its large aluminum frame includes three crossbars for maximum stability, securely holding two fans in a single doorway.

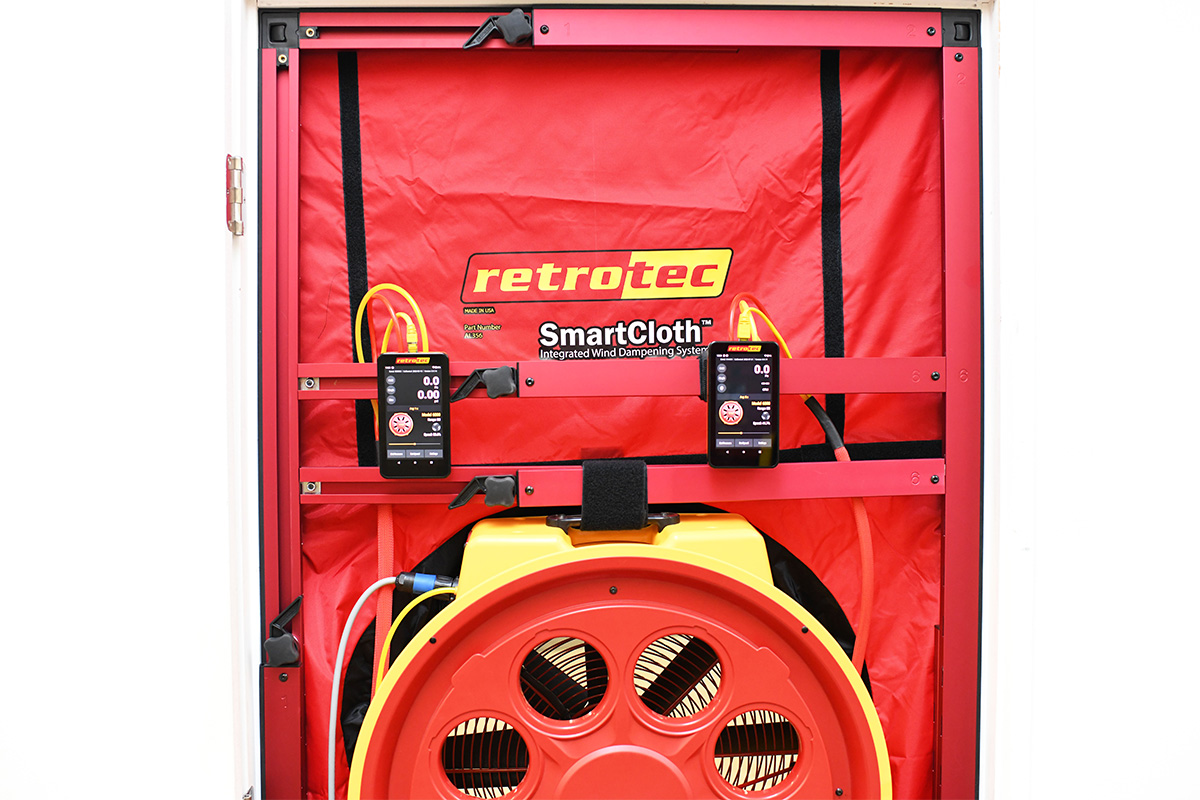

To top it off, the Model 5210 features the game-changing DM32X gauge—the industry standard for precision and usability.

Why Choose the Model 5210?

The Model 5210 is designed for professionals testing larger or leakier buildings. It effectively measures air leakage in small to medium-sized commercial or multi-family buildings. The included Large Aluminum Frame Cloth Door Panel accommodates larger-than-standard doorways, ensuring compatibility with diverse testing scenarios. With its adaptability and cost-effective design, the Model 5210 is a reliable solution for airtightness testing.

Who Uses This Model?

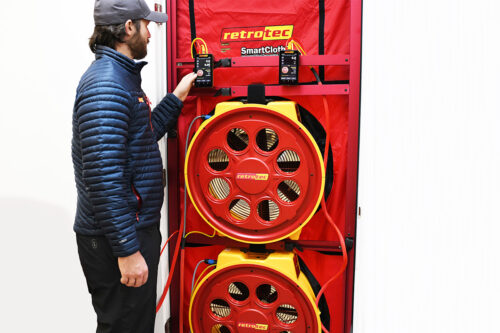

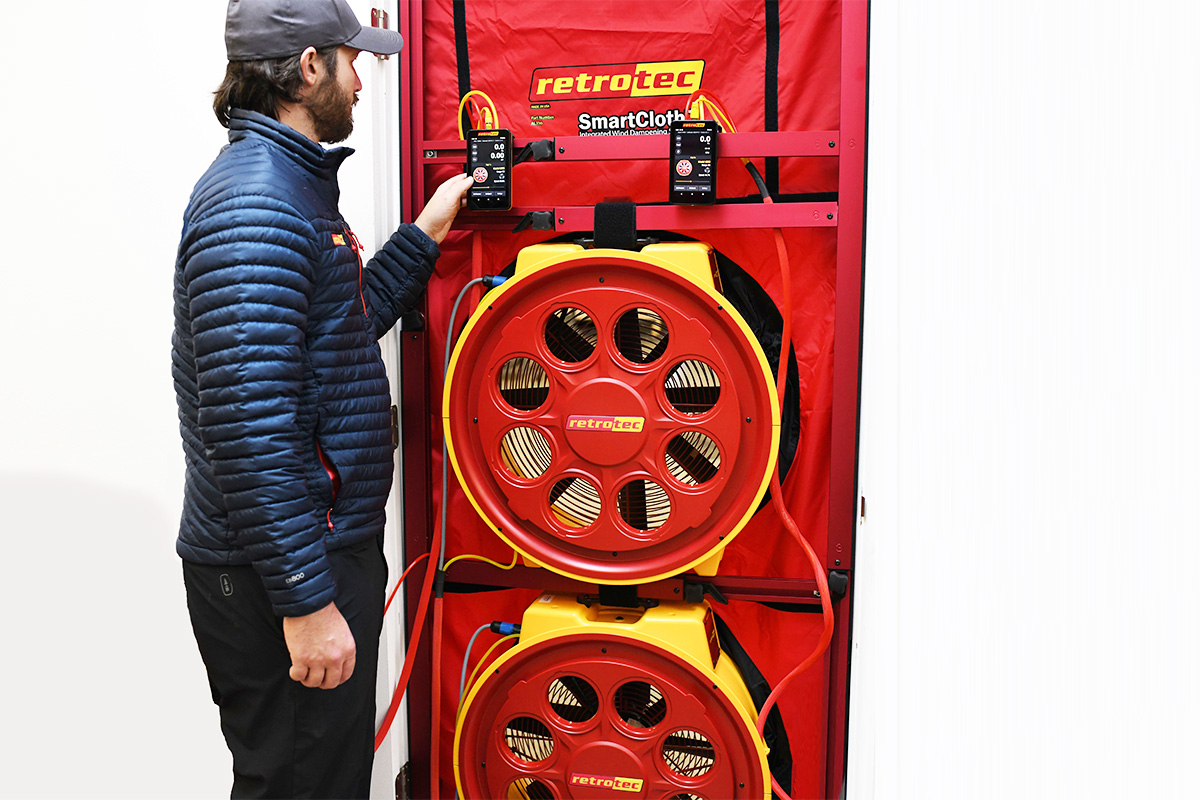

The Model 5210 is trusted by energy auditors, HVAC contractors, building contractors and remodelers, as well as home inspectors who rely on its performance and adaptability for airtightness testing.

2 x 5000 Series Fan Set

Each fan set contains:

5000 Series Calibrated Fan
(120V/60Hz, 240V/50Hz, or 110V/50Hz)
Range Ring A
B8 Plate
8 x Blank Range Plugs
Blower Door Tubing Kit
Tubing Umbilical
Fan Cover
Power Cord
System Calibration Verification Report

1 x Large Cloth Door Panel & Frame Package – Double Fan

Double-Hole SmartCloth™ Wind Dampening Cloth Door
Large SmartCloth™ Wind Dampening Cloth Door
Large Aluminum Frame, Etched with Sizing Markings
Traveling Case

2 x DM32X Gauge Package

Each gauge set contains:

DM32X Gauge
Gauge Case
USB-C Charging Cable
Cat5 Cable
ISO17025 calibration of DM32X
Gauge Calibration Verification Report

1 x System Accessories Case

Model 5000 Fan
	Flow Into:	CFM	Litres/sec	M3/h
Max Flow, per fan (60 Hz) Reduces values by 15% for 50Hz fan	Free Air	6,400	3,020	10,874
	50 Pa	5,700	2,690	9,684
	75 Pa	5,400	2,549	9,175
Minimum Flow:
on Included Range B1	50 Pa	111	52	188
on Optional Range 74	50 Pa	37	17	63
on Optional Range 47	50 Pa	21	10	35
on Optional Range 29	50 Pa	9	4	15
Dimensions:	22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height
Weight:	33.5 lb (15.2 kg) or 35.2 lb (16.0 kg) with Ring A & Plated B8 installed
Flow Accuracy:	+/-5%
Power:	120V@60hz/11A or 240V@50hz/4.9A or 110V@50Hz/ 8.9A
Recommended Fan Calibration Interval:	5 years
Digital Gauge Model:	DM32X (Click Here)
