Product code: 5120
Model 5120
$6,675.00
The Most Professional-Looking System for Residential & Small Commercial Applications

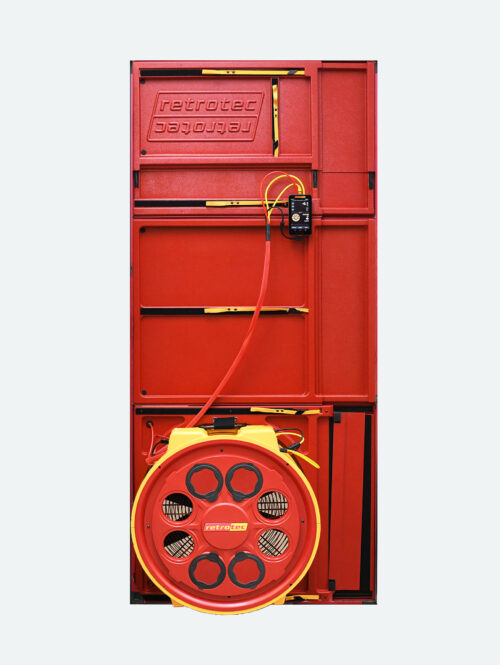

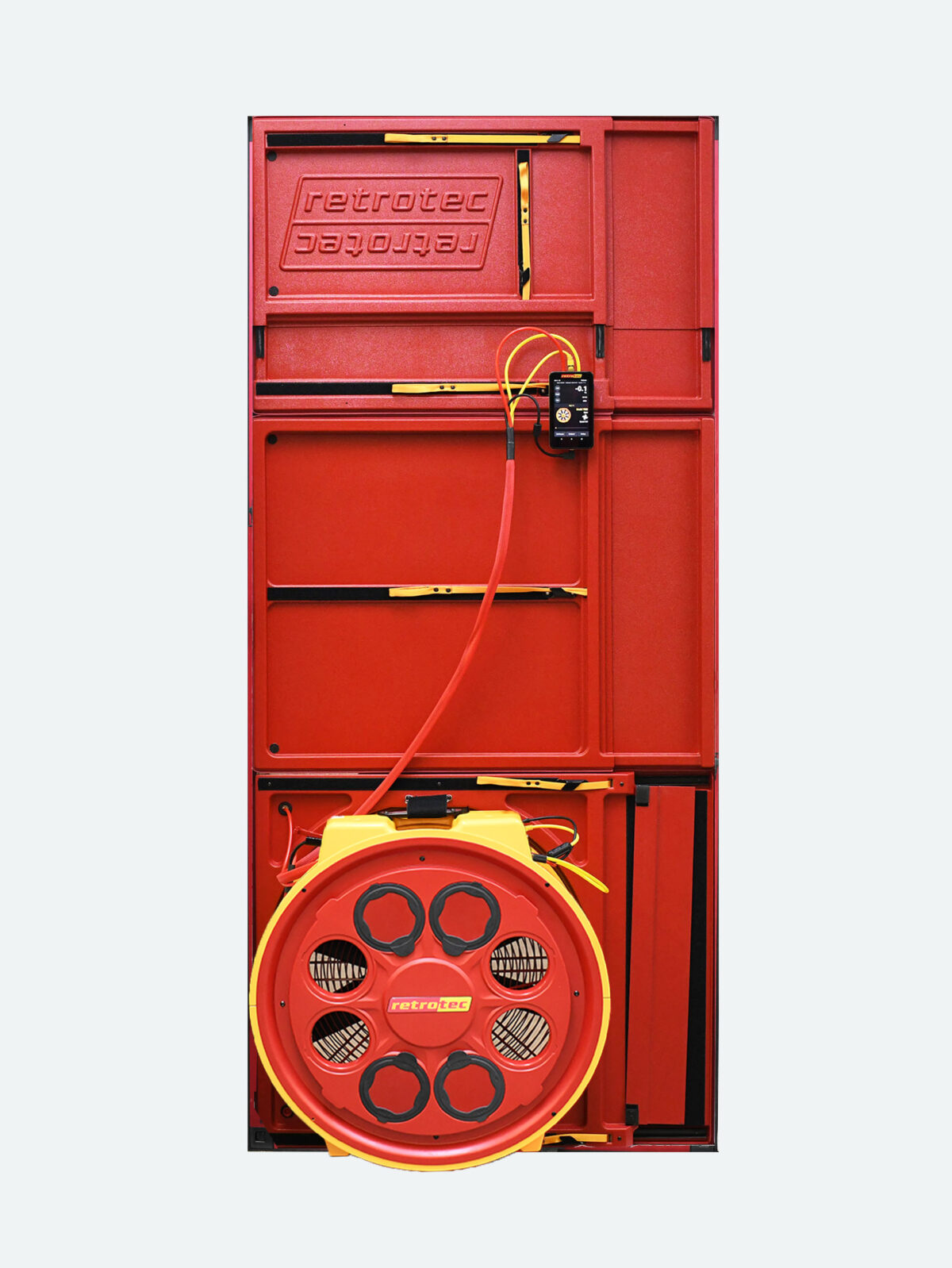

Retrotec’s 5120 Blower Door System is designed for contractors and professionals who want to stand out. By incorporating Retrotec’s exclusive modular door panel into the 5000 series fan, this system becomes the top choice for serious home performance contractors looking to make a lasting, professional impression. Its sleek design eliminates the need for cloth flaps, ensuring a cleaner, more professional setup that can be installed or packed up in seconds.
The 5120 system also includes the revolutionary DM32X gauge, an industry-changing innovation that enhances precision and ease of use. Combined with its advanced features and reliability, this system offers a seamless experience for building diagnostics.
Who Uses the 5120?
This system is trusted by energy auditors, HVAC contractors, building contractors, remodelers, and home inspectors who require a solution that combines professional aesthetics with unparalleled performance.
1 x 5000 Series Fan Set
- 5000 Series Calibrated Fan
(120V/60Hz, 240V/50Hz, or 110V/50Hz) - Range Ring A
- B8 Plate
- 8 x Blank Range Plugs
- Blower Door Tubing Kit
- Tubing Umbilical
- Fan Cover
- Power Cord
- System Calibration Verification Report

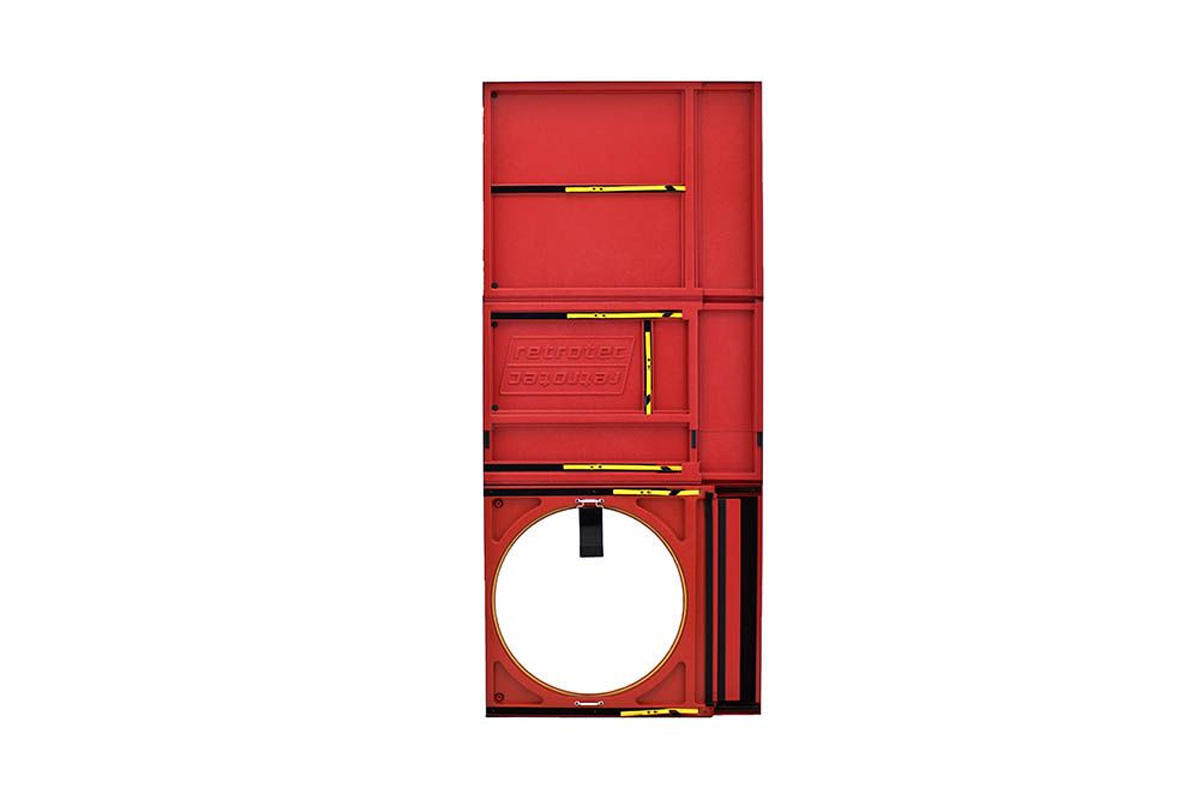

1 x Hard Panel Set for 1000/5000/6000 Series Fan
1 x DM32X Gauge Package
- DM32X Gauge
- Gauge Case
- USB-C Charging Cable
- Cat5 Cable
- ISO17025 calibration of DM32X
- Gauge Calibration Verification Report
| Model 5000 Fan | ||||
| Flow Into: | CFM | Litres/sec | M3/h | |
| Max Flow, per fan (60 Hz)
Reduces values by 15% for 50Hz fan |
Free Air | 6,400 | 3,020 | 10,874 |
| 50 Pa | 5,700 | 2,690 | 9,684 | |
| 75 Pa | 5,400 | 2,549 | 9,175 | |
| Minimum Flow: | ||||
| on Included Range B1 | 50 Pa | 111 | 52 | 188 |
| on Optional Range 74 | 50 Pa | 37 | 17 | 63 |
| on Optional Range 47 | 50 Pa | 21 | 10 | 35 |
| on Optional Range 29 | 50 Pa | 9 | 4 | 15 |
| Dimensions: | 22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height | |||
| Weight: | 33.5 lb (15.2 kg) or 35.2 lb (16.0 kg) with Ring A & Plated B8 installed | |||
| Flow Accuracy: | +/-5% | |||
| Power: | 120V@60hz/11A or 240V@50hz/4.9A or 110V@50Hz/ 8.9A | |||
| Recommended Fan Calibration Interval: | 5 years | |||
