Product code: 5100

Model 5100

$4,825.00

Overview Features
Included Items
Tech Specs

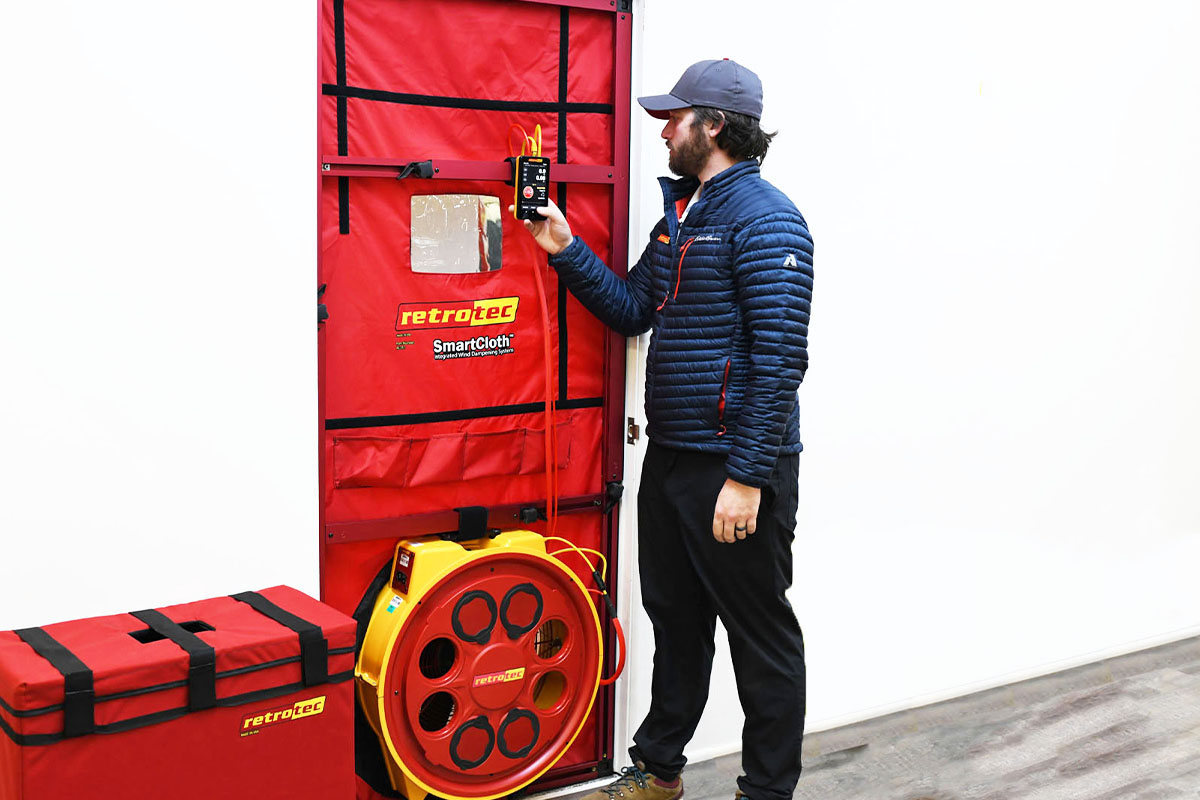

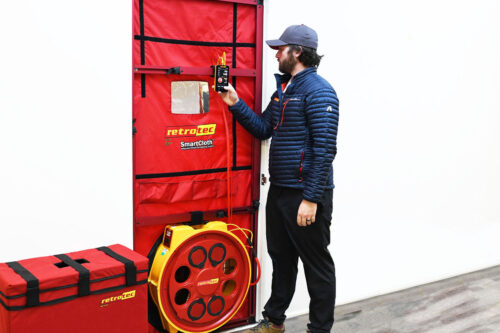

The Most Popular Blower Door System for Residential & Small Commercial Applications

Retrotec’s 5100 Blower Door System is our best-selling solution, outselling all other makes and models on the market. Perfect for testing any residential home, this system comes complete with everything you need: the advanced DM32X gauge, a powerful fan, six ranges, connectors, software, and a durable fan shell backed by an industry-leading 10-year warranty.

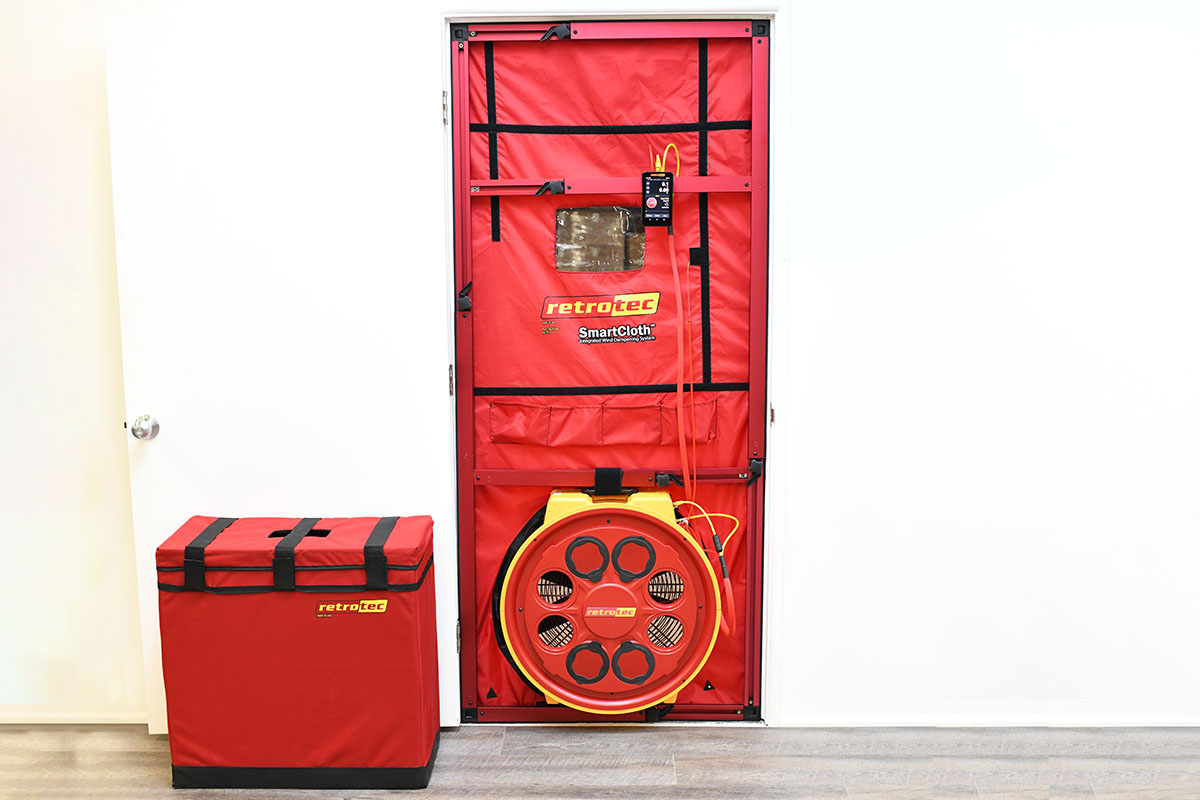

Designed for both fully automatic and manual operation, the 5100 features a quick-connect frame with an extra crossbar for added stability and convenient gauge mounting. The system includes Retrotec’s SmartCloth,™ with built-in bias pressure tubing to act as a wind dampening tool.

With everything included, it’s an all-in-one solution that delivers unmatched performance and reliability.

Who Uses the 5100?
This versatile system is trusted by energy auditors, building contractors, HVAC contractors, remodelers, and home inspectors. Whether you’re conducting energy audits, ensuring HVAC efficiency, or inspecting building envelopes, the 5100 is built to meet your needs.

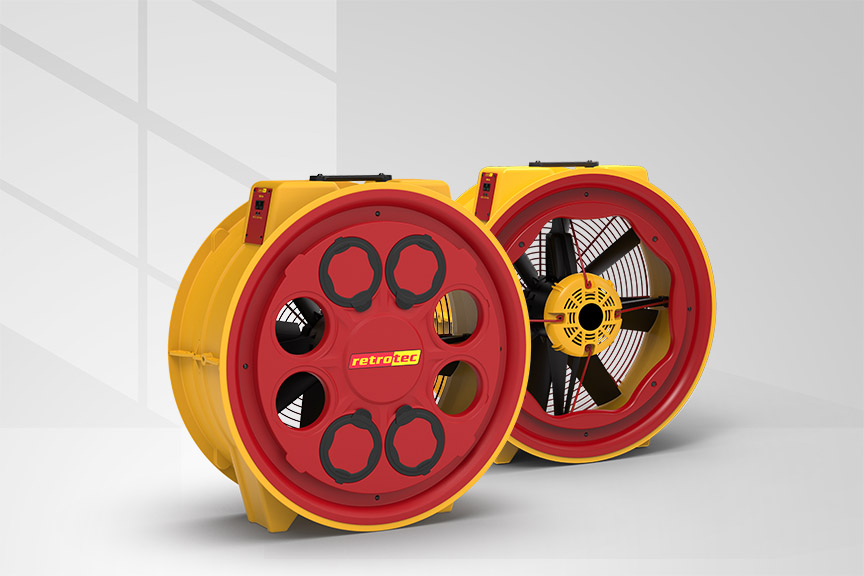

1 x 5000 Series Fan Set

5000 Series Calibrated Fan
(120V/60Hz, 240V/50Hz, or 110V/50Hz)
Range Ring A
B8 Plate

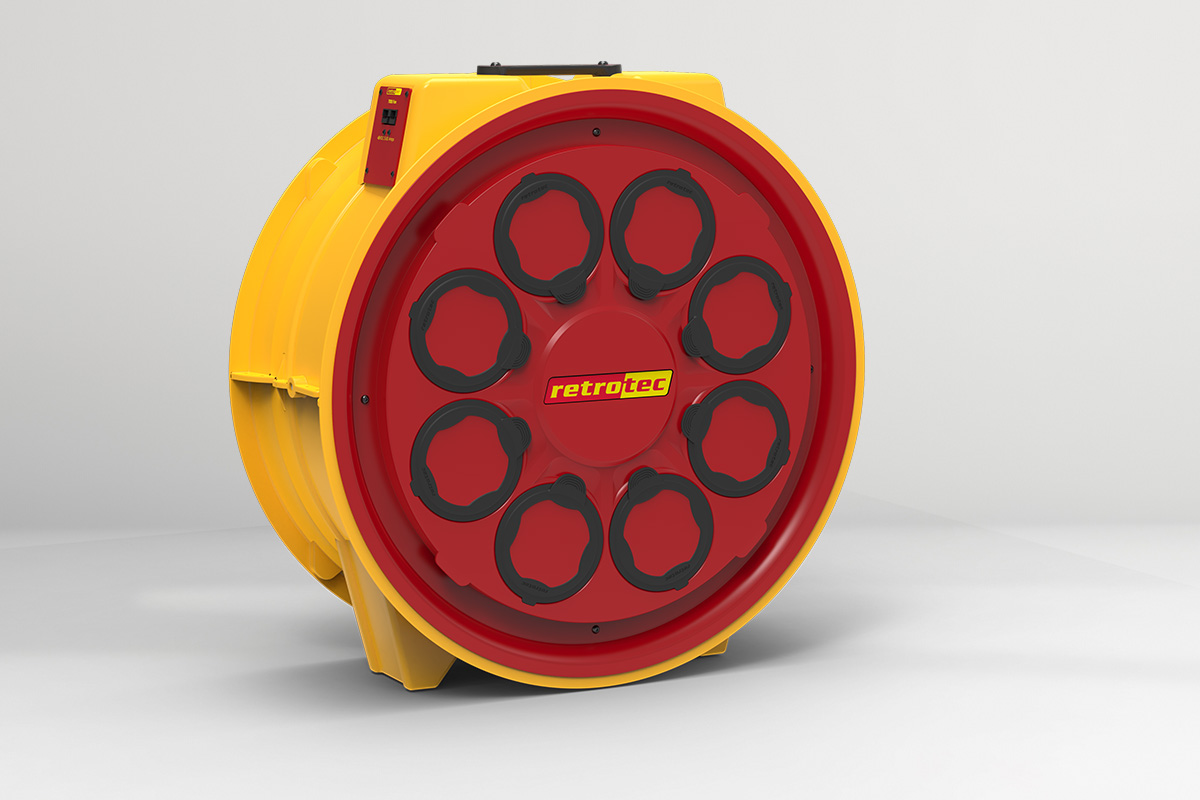

8 x Blank Range Plugs
Blower Door Tubing Kit
Tubing Umbilical
Fan Cover
Power Cord
System Calibration Verification Report

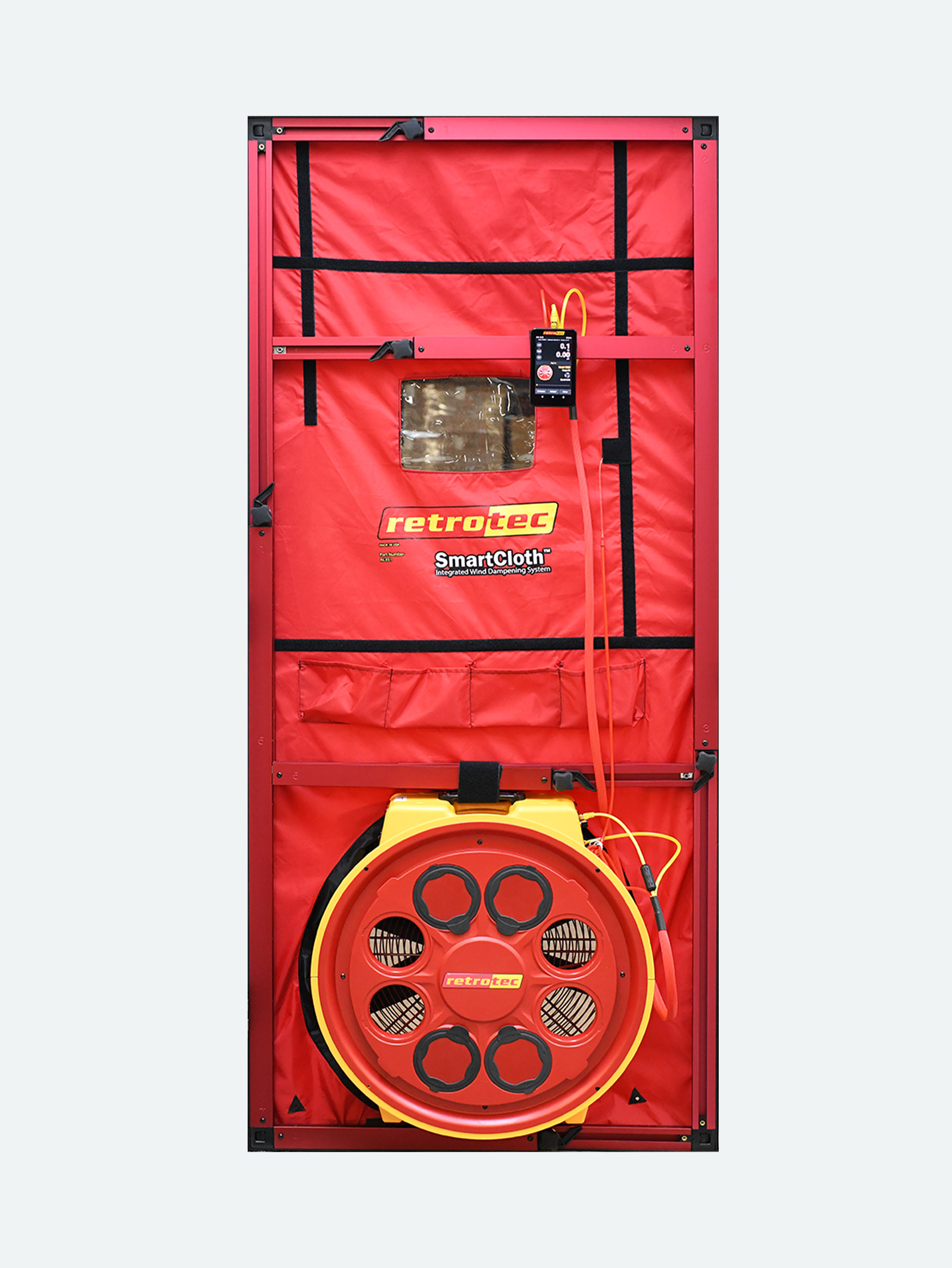

1 x SmartCloth™ Door Panel & Frame

SmartCloth™ Wind Dampening Cloth Door
Aluminum Frame, Etched with Sizing Markings
Traveling Case

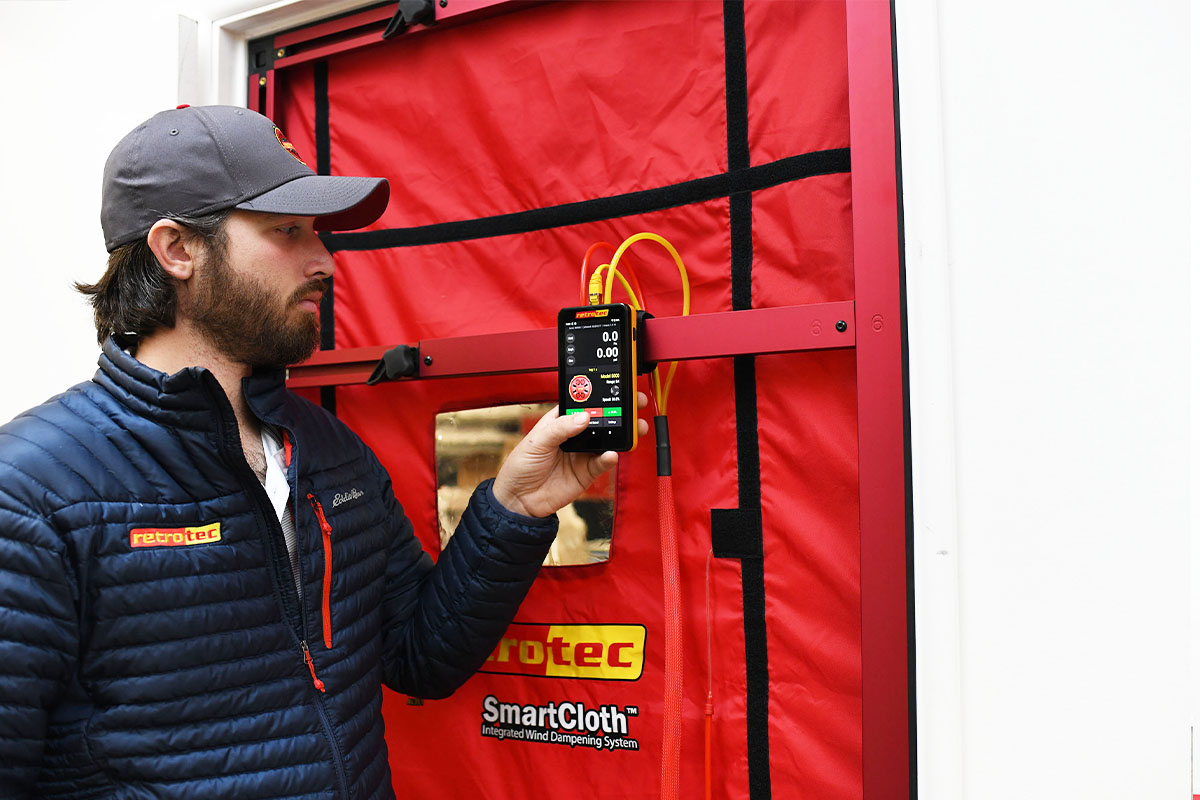

1 x DM32X Gauge Package

DM32X Gauge
Gauge Case
USB-C Charging Cable
Cat5 Cable
ISO17025 calibration of DM32X
Gauge Calibration Verification Report

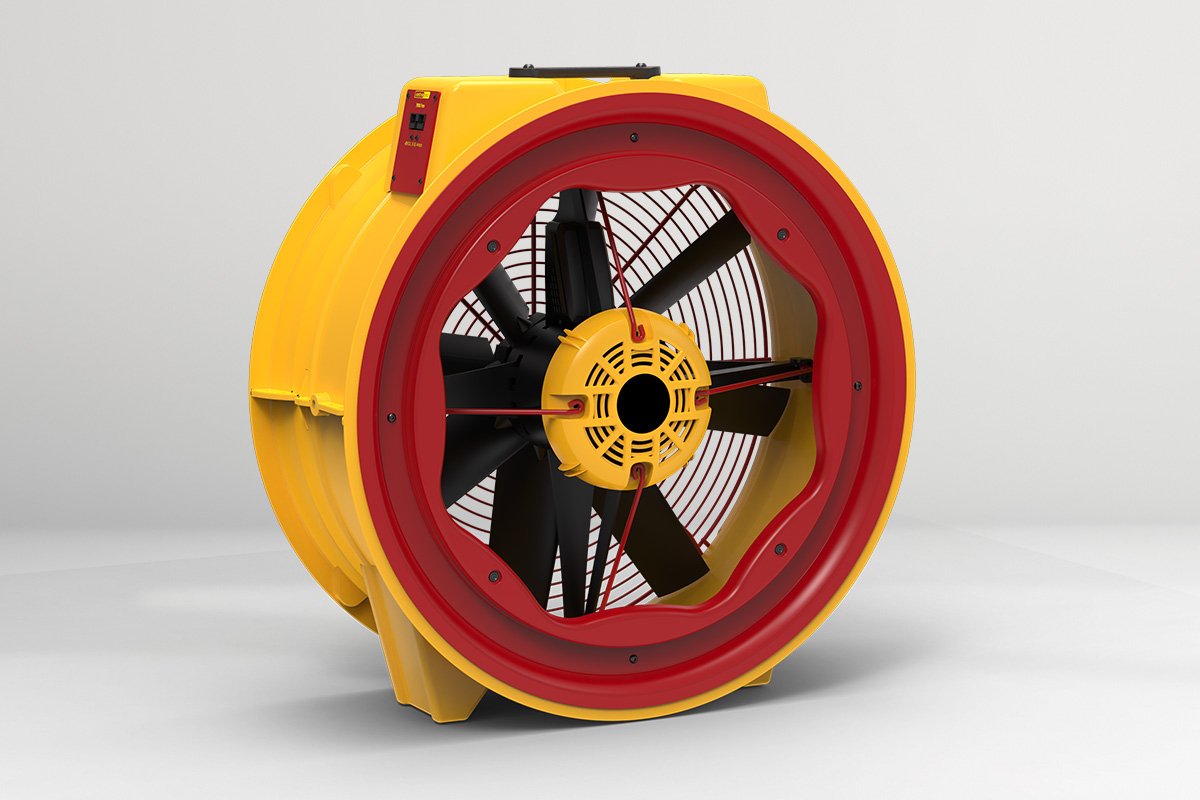

Model 5000 Fan
	Flow Into:	CFM	Litres/sec	M3/h
Max Flow, per fan (60 Hz) Reduces values by 15% for 50Hz fan	Free Air	6,400	3,020	10,874
	50 Pa	5,700	2,690	9,684
	75 Pa	5,400	2,549	9,175
Minimum Flow:
on Included Range B1	50 Pa	111	52	188
on Optional Range 74	50 Pa	37	17	63
on Optional Range 47	50 Pa	21	10	35
on Optional Range 29	50 Pa	9	4	15
Dimensions:	22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height
Weight:	33.5 lb (15.2 kg) or 35.2 lb (16.0 kg) with Ring A & Plated B8 installed
Flow Accuracy:	+/-5%
Power:	120V@60hz/11A or 240V@50hz/4.9A or 110V@50Hz/ 8.9A
Recommended Fan Calibration Interval:	5 years
Digital Gauge Model:	DM32X (Click Here)
