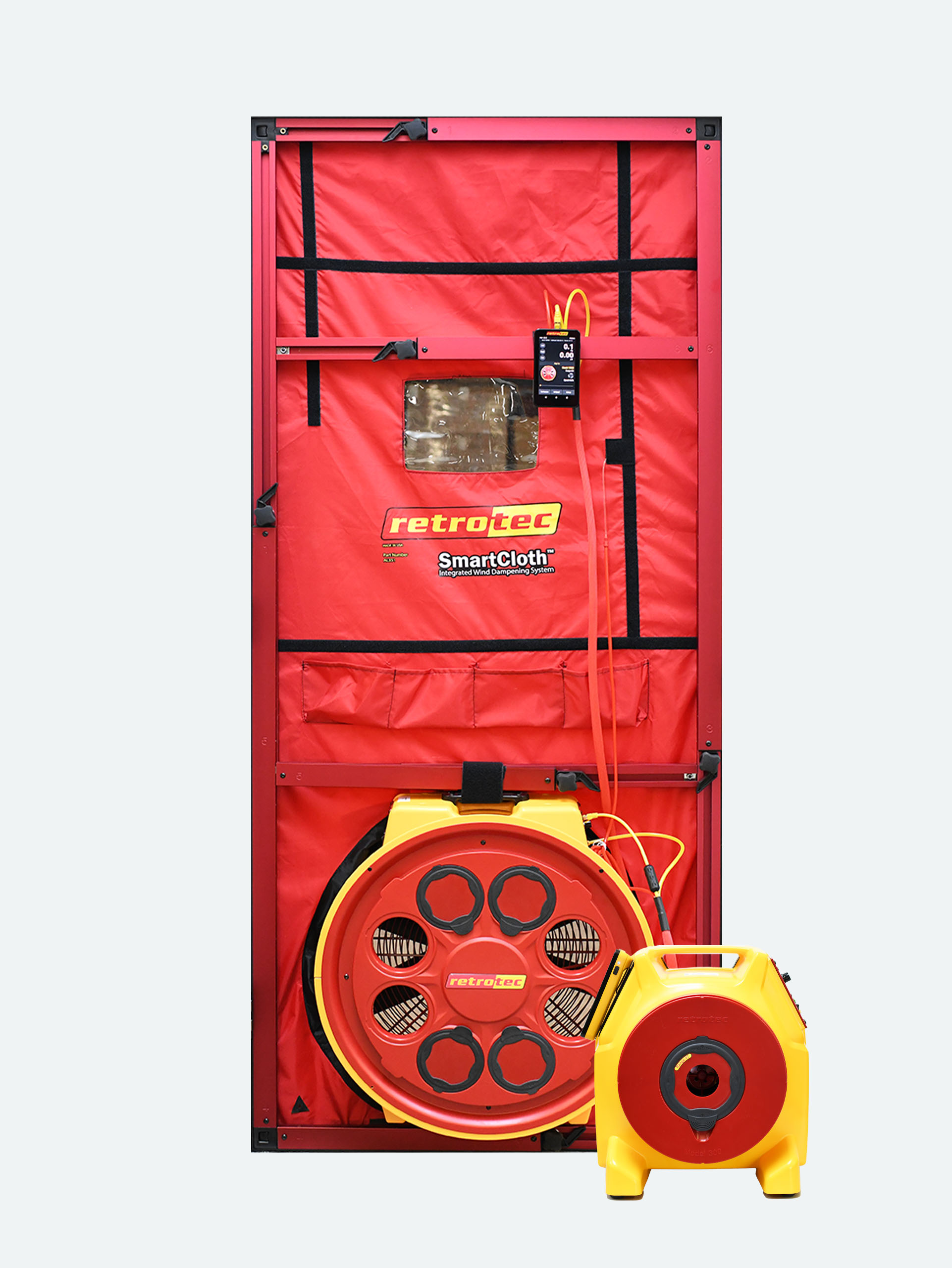

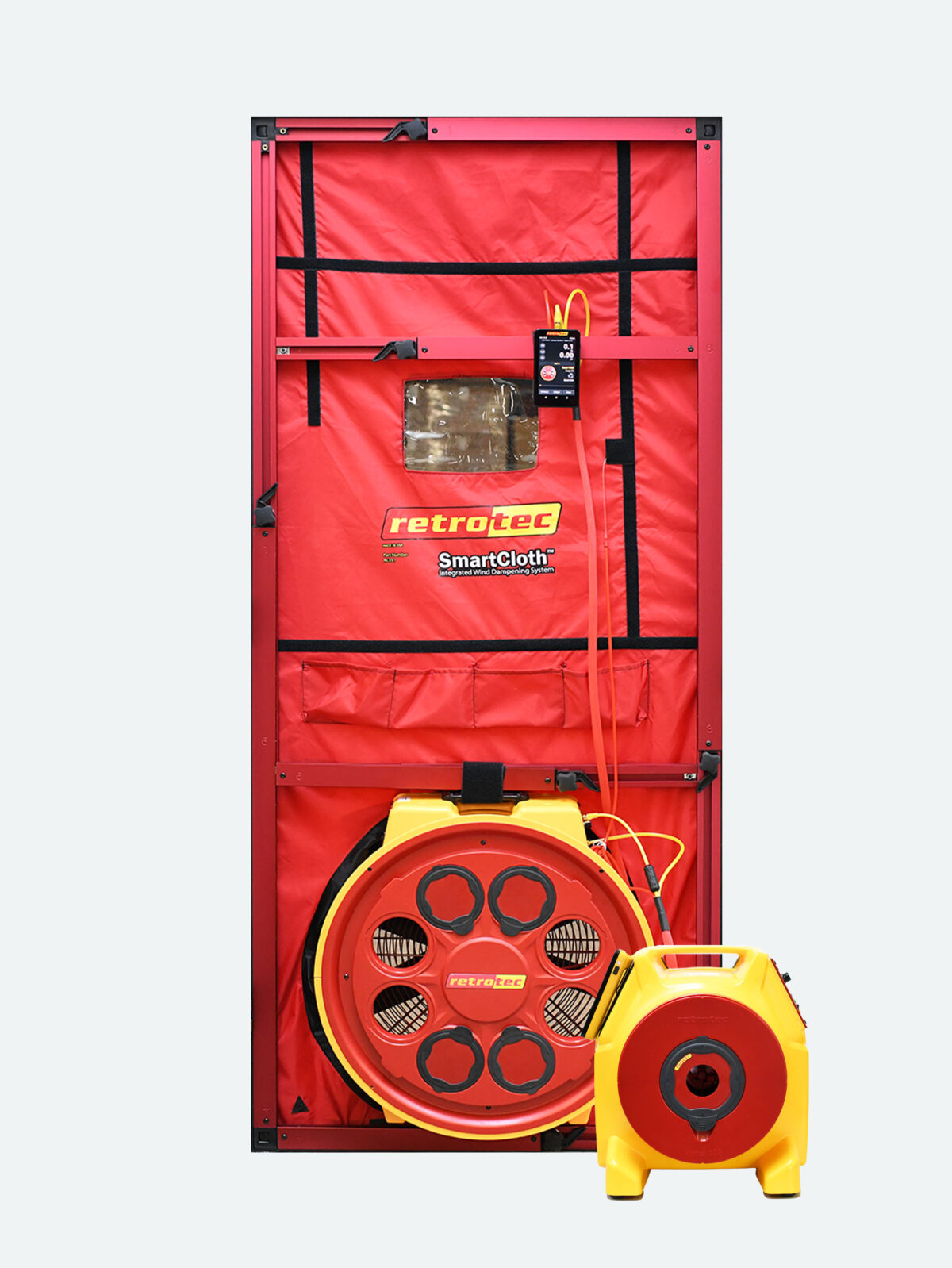

Unlock Savings with the Model 5100 and 340 DucTester Combo
Take advantage of discounted pricing by purchasing these two industry-leading systems together, offering everything you need for comprehensive residential testing.
Model 5100 Blower Door
Retrotec’s most popular blower door system for residential and small commercial applications is trusted by professionals worldwide. The Model 5100 outperforms and outsells other makes and models, delivering unmatched performance and reliability. This all-in-one system comes complete with the newly released DM32X gauge, a powerful fan, six flow ranges, connectors, software, and Retrotec’s industry-leading 10-year warranty on the fan shell. With both fully automatic and manual operation, the quick-connect frame features an extra crossbar for added stability and convenient gauge mounting. Designed for ease of use, it’s the perfect tool for testing any residential enclosure.

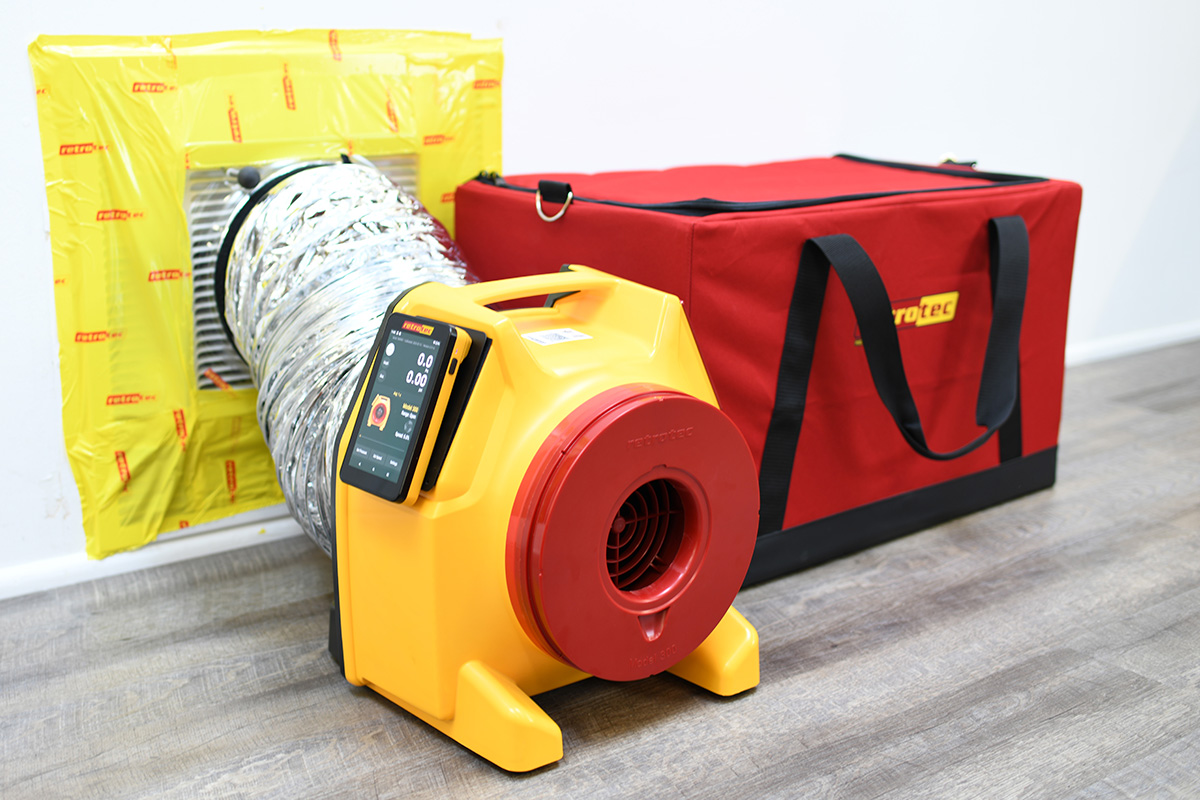

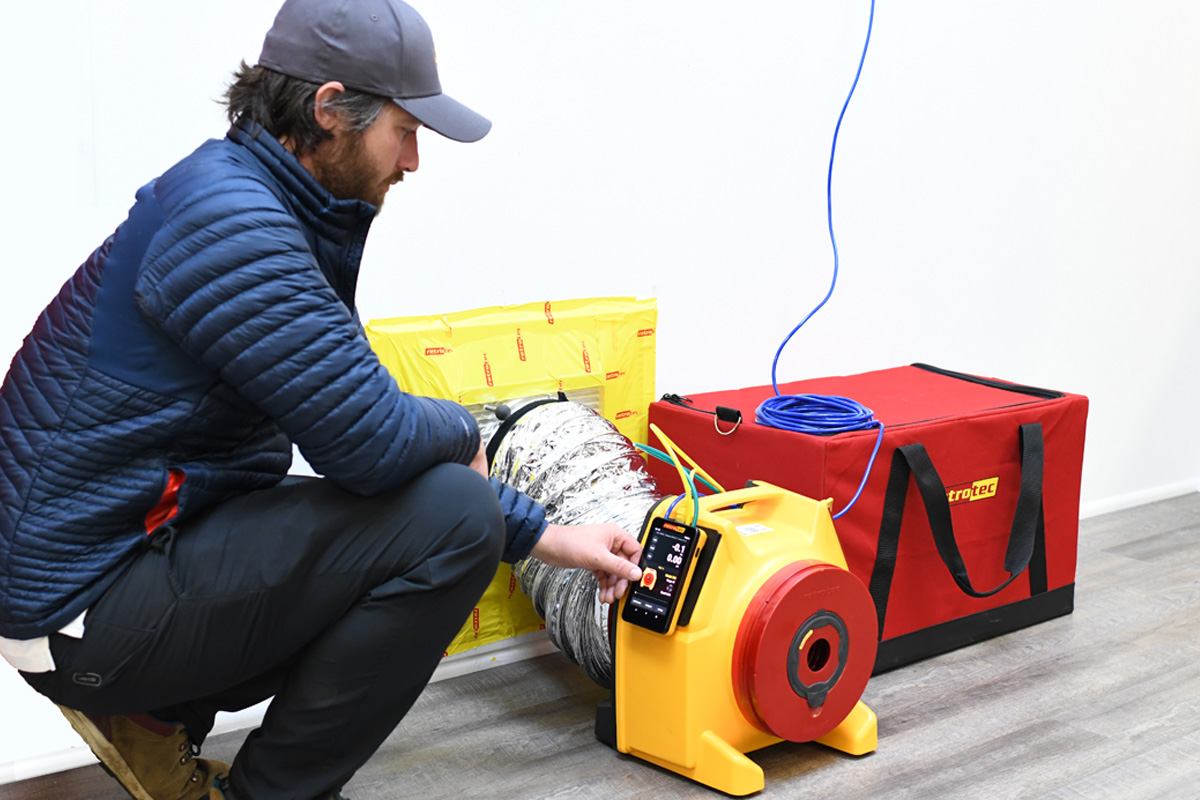

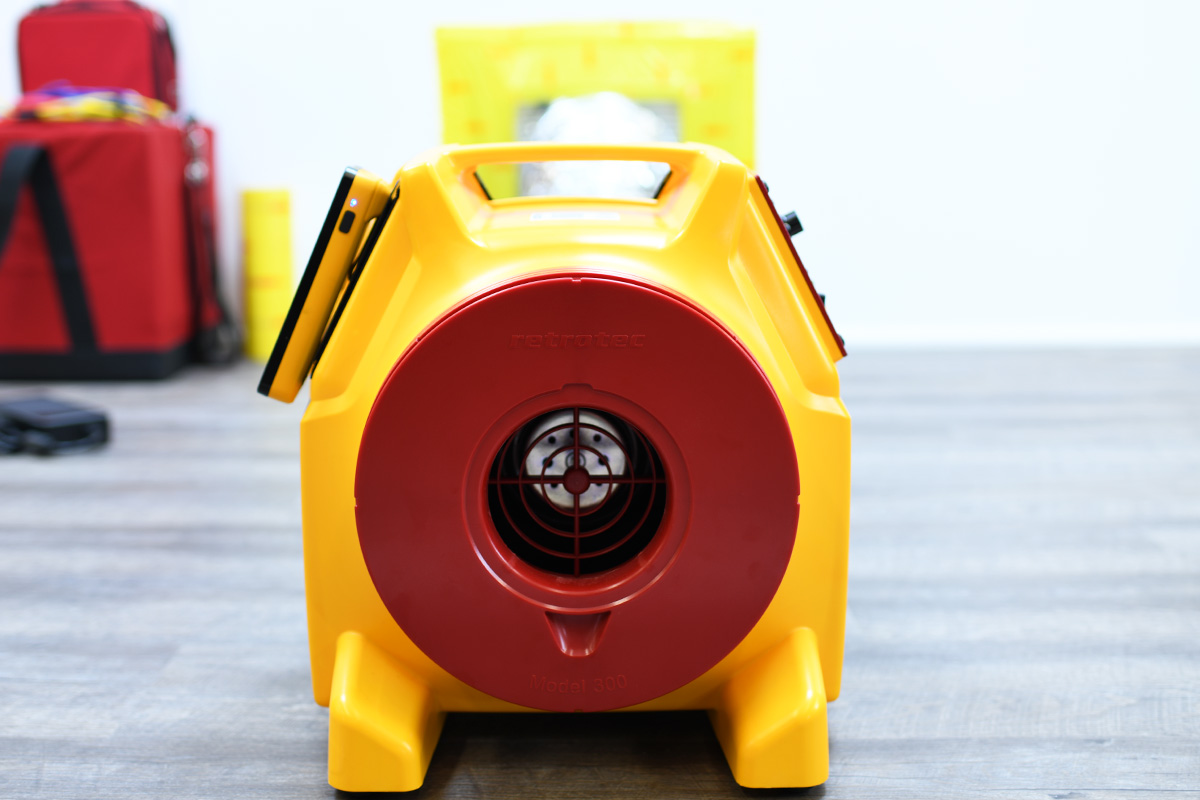

Model 340x DucTester
The Model 340x DucTester is incredibly lightweight and versatile, ideal for testing duct systems from the leakiest to the tightest. This complete package includes three flow ranges (Open, 102, 74, and 47), the groundbreaking DM32X gauge, a roll of Grill Mask for sealing registers, and a large carrying case for portability.
Building on the success of its predecessor, the Model 340, this updated design features a mounted gauge option for improved accessibility and a redesigned foot base for added stability during tests. Retrotec’s advanced training resources and reporting software ensure that even complex duct testing can be carried out with ease and precision.
Please note: This combo package is excluded from additional promotional discounts and cannot be combined with other offers or promo codes.
1 x 5000 Series Fan Set
1 x SmartCloth™ Door Panel & Frame
1 x DM32X Gauge Package
|
1 x 300 Series Fan Set
1 x DucTester Accessory Kit
1 x DM32X Gauge Package
|
| Model 5000 Fan | ||||
| Flow Into: | CFM | Litres/sec | M3/h | |
| Max Flow, per fan (60 Hz)
Reduces values by 15% for 50Hz fan |
Free Air | 6,400 | 3,020 | 10,874 |
| 50 Pa | 5,700 | 2,690 | 9,684 | |
| 75 Pa | 5,400 | 2,549 | 9,175 | |
| Minimum Flow: | ||||
| on Included Range B1 | 50 Pa | 111 | 52 | 188 |
| on Optional Range 74 | 50 Pa | 37 | 17 | 63 |
| on Optional Range 47 | 50 Pa | 21 | 10 | 35 |
| on Optional Range 29 | 50 Pa | 9 | 4 | 15 |
| Dimensions: | 22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height | |||
| Weight: | 33.5 lb (15.2 kg) or 35.2 lb (16.0 kg) with Ring A & Plated B8 installed | |||
| Flow Accuracy: | +/-5% | |||
| Power: | 120V@60hz/11A or 240V@50hz/4.9A or 110V@50Hz/ 8.9A | |||
| Recommended Fan Calibration Interval: | 5 years | |||
| Model 300x Fan
|
|
|||
| Flow Into: | CFM | liters/sec | m3/h | |
| Maximum Flow, CFM | Free Air | 798 | 376.6 | 1355.8 |
| 25 Pa | 719.8 | 339.7 | 1222.9 | |
| Minimum Flow | Range 102 – Standard | 164.3 | 77.5 | 279.1 |
| Range 74 – Standard | 28.1 | 13.3 | 47.7 | |
| Range 47 – Standard | 12.5 | 5.9 | 21.2 | |
| Range 29 – Optional | 5.2 | 2.5 | 8.8 | |
| Range 18 – Optional | 2.2 | 1.0 | 3.7 | |
| Range 11 – Optional | 0.9 | 0.4 | 1.5 | |
| Range 07 – Optional | 0.3 | 0.14 | 0.51 | |
| Range 03 – Optional | 0.1 | 0.04 | 0.17 | |
| Dimensions | 14″ × 12.5″ × 14.5″ (35.5 x 32 x 37 cm) | |||
| Weight | 14 lb (6.3 kg) | |||
| Flow Accuracy | +/-3% ISO 17025 accredited certificate available | |||
| Power Supply | Input: 120V/60Hz, 240V/50Hz, or 110V/50Hz
Output: 48V DC/ 3.31A |
|||
| Power Output | 0.213 hp, 159 Watts | |||
| Maximum Fan Calibration Interval | Every 5 years or sooner depending on standard | |||
| Digital Gauge Model | DM32X (Click Here) | |||
